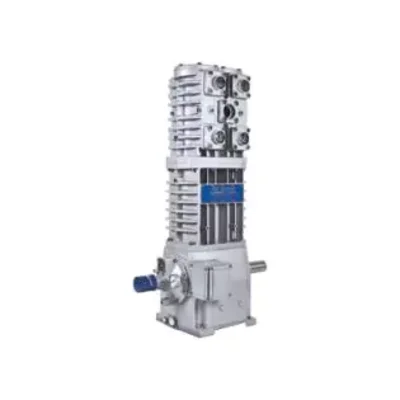

Magnetron Oilfield Equipment (L.L.C) offers the Corken 491 Compressor, a high-performance reciprocating compressor designed for demanding applications such as LPG and ammonia transfer, vapor recovery, and unloading processes. Built with precision and durability, this compressor ensures efficient and reliable operation in various industrial settings.
Key Specifications:
- Cylinder Bore: 4.0 inches (101.6 mm)
- Stroke: 3.0 inches (76.2 mm)
- Piston Displacement: 17.5 cfm (29.7 m³/h) at 400 RPM to 36.0 cfm (61.2 m³/h) at 825 RPM
- Maximum Working Pressure: 335 psig (23.1 bar g)
- Maximum Brake Horsepower: 15 hp (11 kW)
- Maximum Rod Load: 4,000 lb (1,814 kg)
- Maximum Outlet Temperature: 350°F (177°C)
- Minimum Inlet Temperature: -25°F (-32°C)
- Bare Unit Weight: 390 lb (176.9 kg)
- Maximum Flow (Propane): 215 gpm (48.8 m³/h)
Standard Components:
- Steel baseplate
- V-belt drive
- Adjustable driver-side base
- Enclosed steel guard
- Suction and discharge pressure gauges
- 40-micron strainer
- Non-lube 4-way valve
- Interconnecting piping
- Liquid trap (mechanical or automatic options available)
