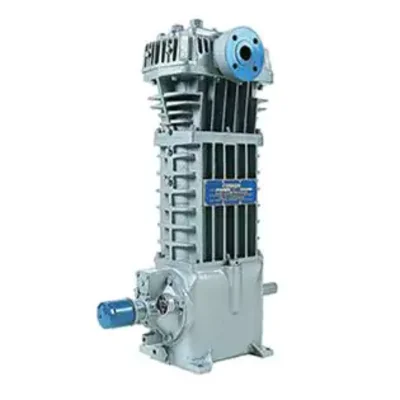

Magnetron Oilfield Equipment (L.L.C) is a trusted supplier of the Corken FD891 Compressor in the UAE, offering reliable and efficient solutions for various industrial applications.
Key Specifications:
- Cylinder Bore:5 inches (114.3 mm)
- Stroke:0 inches (101.6 mm)
- Piston Displacement:7 cfm (96.3 m³/h) at 400 RPM to 117 cfm (198.8 m³/h) at 825 RPM
- Maximum Working Pressure:450 psig (31.0 bar g)
- Maximum Brake Horsepower:45 hp (34 kW)
- Maximum Rod Load:7,000 lb (3,175 kg)
- Maximum Outlet Temperature:350°F (177°C)
- Minimum Inlet Temperature:-25°F (-32°C)
- Bare Unit Weight:900 lb (408.2 kg)
- Maximum Flow (Propane):694 gpm (157.6 m³/h)
Standard Components:
- Steel baseplate
- V-belt drive
- Adjustable driver-side base
- Enclosed steel guard
- Suction and discharge pressure gauges
- 40-micron strainer
- Non-lube 4-way valve
- Interconnecting piping
Liquid trap as specified below
